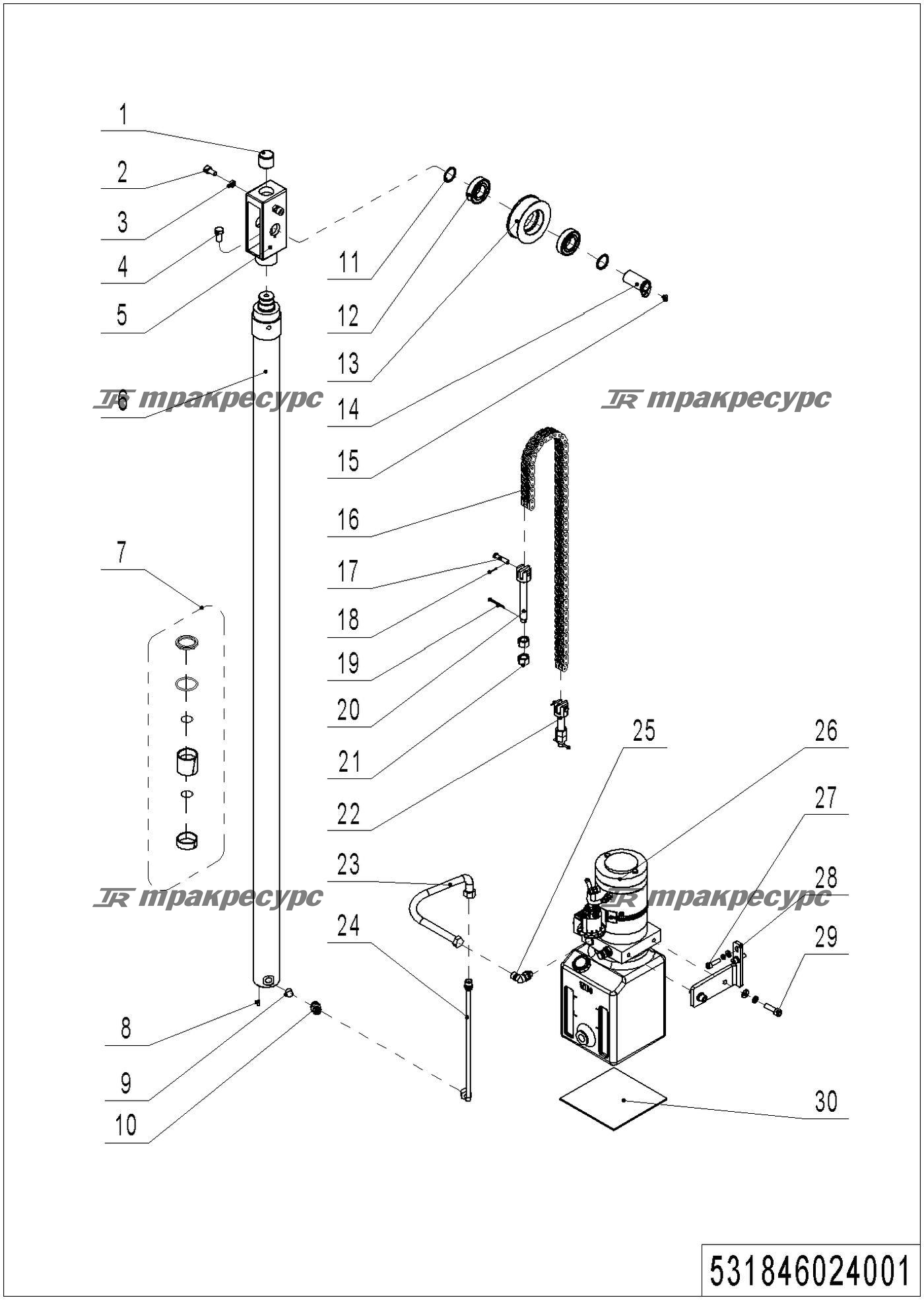

Noblelift ECL15B_N Гидравлические компоненты 531846024001

№	Наименование	Артикул
1	Crash Pad	532644020094
2	Screw	910200200075
3	Nut	910300300005
4	Bolt	910100300049
5	Yoke	531821520028
6	Cylinder	531821510015
6	Cylinder	531821510016
6	Cylinder	532644010031
6	Cylinder	532644010037
6	Cylinder	532644010041
7	Seal Kit	532698510001
8	Spring Pin	910600400020
9	Safety Valve	950600300001
10	Joint	950400400003
11	Washer	940600500008
12	Bearing	910700200021
13	Sprocket	940200400003
14	Pin	532644010035
15	Screw	910200400014
16	Chain	532643510087
16	Chain	531821510014
16	Chain	532644010083
16	Chain	532644010084
16	Chain	532644010085
17	Pin	941100800008
18	Cotter Pin	910600600015
19	Cotter Pin	910600600037
20	Chain Anchor	532643520137
21	Nut	910300200008
22	Chain Anchor	532643520137
22	Chain Anchor	532644020096
23	Hose	532424010001
24	Steel Tube	531824010003
25	Joint	950401100008
26	Pump Unit	------------
27	Screw	910200200059
28	Mounting Plate	531824020003
29	Screw	910200200076
30	Crash Pad	531837020012
