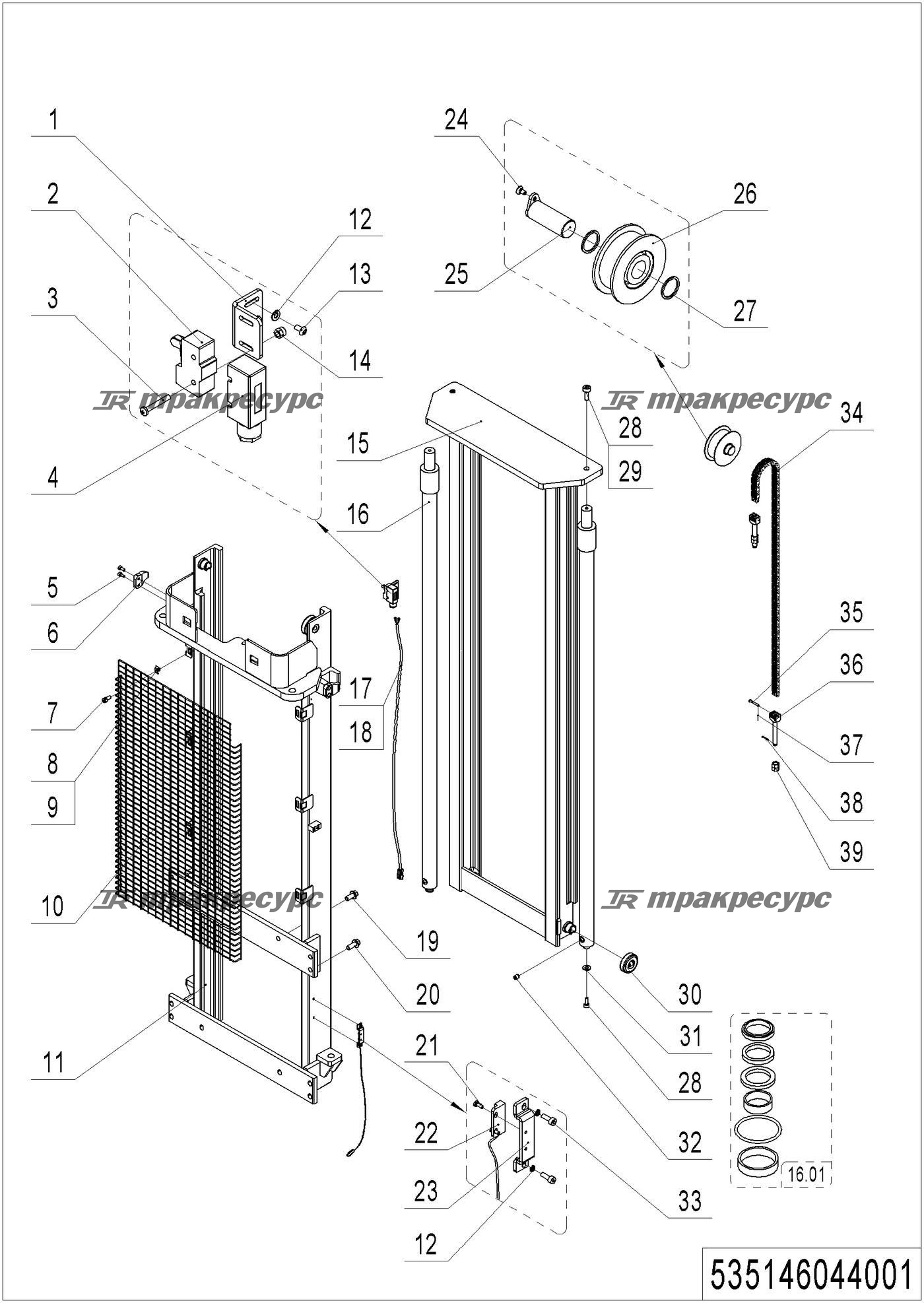

Noblelift PS18TSL-PS18TSL Двухступенчатая мачта стандартного подъема 535146044001

№	Наименование	Артикул
1	Fixing Plate	534744520036
2	Microswitch	920200300001
3	Screw	910200500028
4	Protective Cover	920200300008
5	Screw	910200200057
6	Fixing Plate	275044020076
7	Screw	910200200038
8	Cage Nut	940801500001
9	Press Plate	320443020321
10	Protective Frame	535044020024
10	Protective Frame	535044020021
10	Protective Frame	535044020023
11	Outer Mast(2900)	535144010010
11	Outer Mast(3200)	535144010006
11	Outer Mast(3600)	535144010000
12	Flat Washer	910400100003
13	Screw	910200300005
14	Nut	910300500001
15	Inner Mast(2900)	535044010017
15	Inner Mast(3200)	535044010016
15	Inner Mast(3600)	535044010015
16	Cylinder	535044010008
16	Cylinder	535044010007
16	Cylinder	535044010006
16.01	Seal Kit	535098510003
17	Cable Tie	921600400003
18	Wire Harness	534733010015
18	Wire Harness	535133510001
18	Wire Harness	535133510002
19	Bolt	910100800005
20	Bolt	910100800006
21	Screw	910200500010
22	Switch	534833510003
23	Protective Cover	534744520059
24	Screw	910200400016
25	Pin	535045010008
26	Sprocket Bearing	940200500011
27	Washer	940600500008
28	Screw	910200200097
29	Spring Washer	910400500008
30	Compound Roller	940200300022
31	Subplate	534744520015
32	Safety Valve	950600300001
33	Screw	910200200015
34	Chain	535045010009
34	Chain	535144010014
34	Chain	535144010015
35	Pin	941100800009
36	Chain Anchor	535045020024
37	Cotter Pin	910600600015
38	Cotter Pin	910600600023
39	Nut	910300200008
