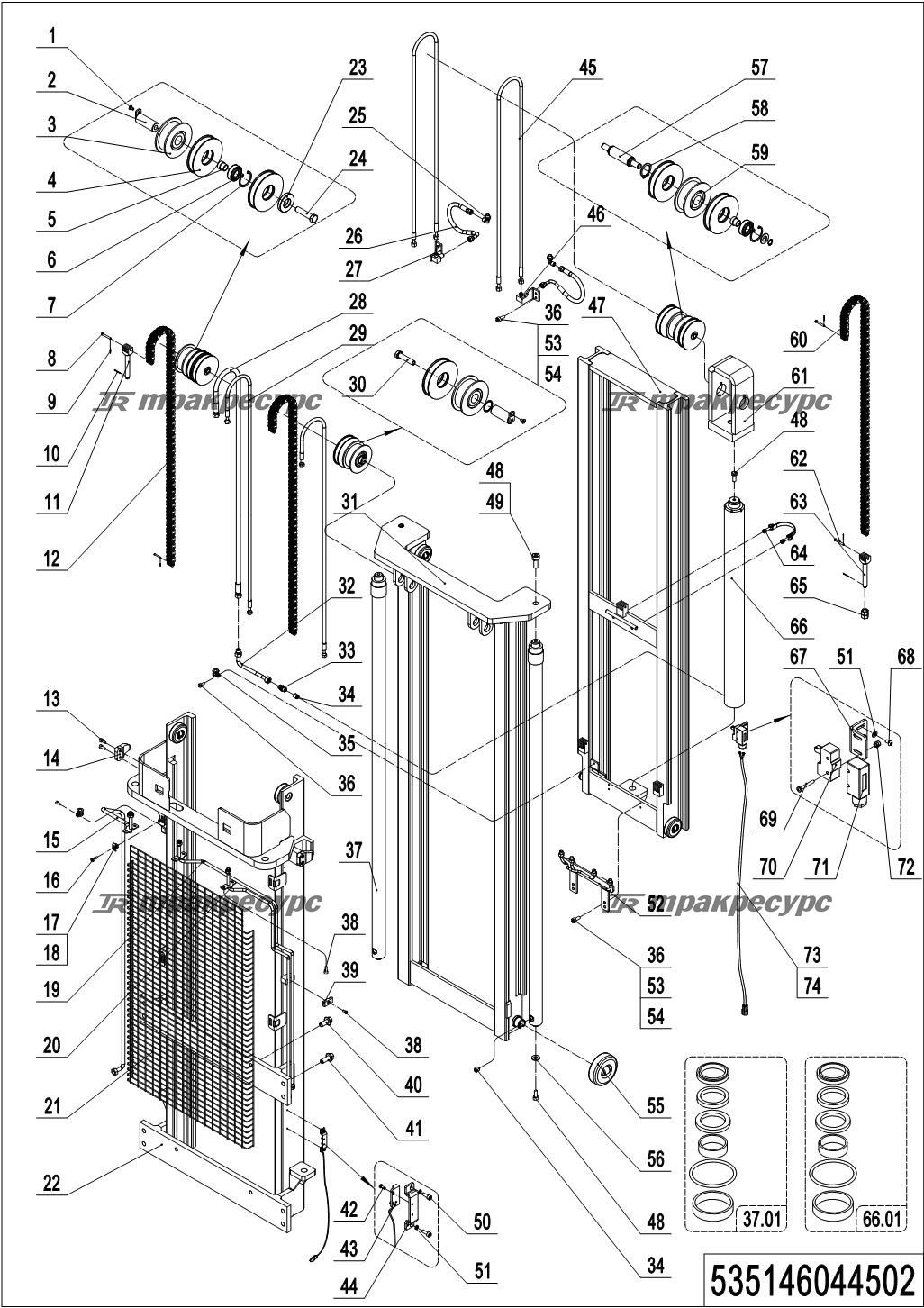

Noblelift PS18TSL-PS18TSL Тройная мачта с полной свободной высотой (боковой сдвиг) 535146044502

№	Наименование	Артикул
1	Screw	910200400016
2	Pin	533544510006
3	Sprocket Bearing	940200500010
4	Pulley	535944520000
5	Sleeve	534844520011
6	Bearing	910700200019
7	Circlip	910401400013
8	Pin	941100800006
9	Cotter Pin	910600600015
10	Cotter Pin	910600600023
11	Chain Anchor	532644520038
12	Chain	535044510020
12	Chain	534145010005
12	Chain	535044510016
13	Screw	910200200057
14	Fixing Plate	275044020076
15	Steel Tube	535144510019
15	Steel Tube	535144510013
15	Steel Tube	535144510002
16	Screw	910200200038
17	Cage Nut	940801500001
18	Press Plate	320443020321
19	Steel Tube	535144510021
19	Steel Tube	535144510015
19	Steel Tube	535144510003
20	Steel Tube	535144510020
20	Steel Tube	535144510014
20	Steel Tube	535144510004
21	Protective Frame	535044020025
21	Protective Frame	535044020022
21	Protective Frame	535044020021
22	Outer Mast(4000)	535144510017
22	Outer Mast(4300)	535144510010
22	Outer Mast(4600)	535144510000
23	Washer	255027520004
24	Bolt	910100100074
25	Joint	950401100002
26	Hose	534844010014
26	Hose	534844010018
27	Adapter	535144510024
28	Hose	535044510019
28	Hose	532644520143
28	Hose	532644520144
29	Hose	535144510022
29	Hose	535144510012
29	Hose	534844510005
30	Spindle nose	534844520003
31	Middle Mast(4000)	535044510026
31	Middle Mast(4300)	535044510025
31	Middle Mast(4600)	535044510024
32	Steel Tube	535144510007
33	Joint	950400400003
34	Safety Valve	950600300001
35	Hose Clamp	951000100001
36	Screw	910200200035
37	Cylinder	535044510002
37	Cylinder	535044510001
37	Cylinder	535044510000
37.01	Seal Kit	535098510000
38	Screw	910200200033
39	Press Plate	534844520007
40	Bolt	910100800005
41	Bolt	910100800006
42	Screw	910200500010
43	Switch	534833510003
44	Protective Cover	534744520059
45	Hose	535144510023
45	Hose	535144510016
45	Hose	535144510009
46	Adapter	535144510025
47	Inner Mast(4000)	535144510018
47	Inner Mast(4300)	535144510011
47	Inner Mast(4600)	535144510001
48	Screw	910200200097
49	Spring Washer	910400500008
50	Screw	910200200015
51	Flat Washer	910400100003
52	Steel Tube	535144510008
53	Flat Washer	910400100005
54	Spring Washer	910400500005
55	Compound Roller	940200300022
56	Subplate	534744520015
57	Axle	534844520002
58	Circlip	910401300016
59	Sprocket Bearing	940200500011
60	Chain	535044510018
60	Chain	535043510022
60	Chain	535044510017
61	Yoke	535043510034
62	Pin	941100800009
63	Chain Anchor	535045020024
64	Hoop	940800600002
65	Nut	910300200008
66	Cylinder	535043510012
66	Cylinder	534744510013
66	Cylinder	534744510012
66.01	Seal Kit	534798510001
67	Fixing Plate	534744520036
68	Screw	910200300005
69	Screw	910200500028
70	Microswitch	920200300001
71	Protective Cover	920200300008
72	Nut	910300500001
73	Wire Harness	534733010014
73	Wire Harness	534733010015
73	Wire Harness	535133510001
74	Cable Tie	921600400003

1

Screw

910200400016

2

533544510006

3

Sprocket Bearing

940200500010

4

Pulley

535944520000

5
