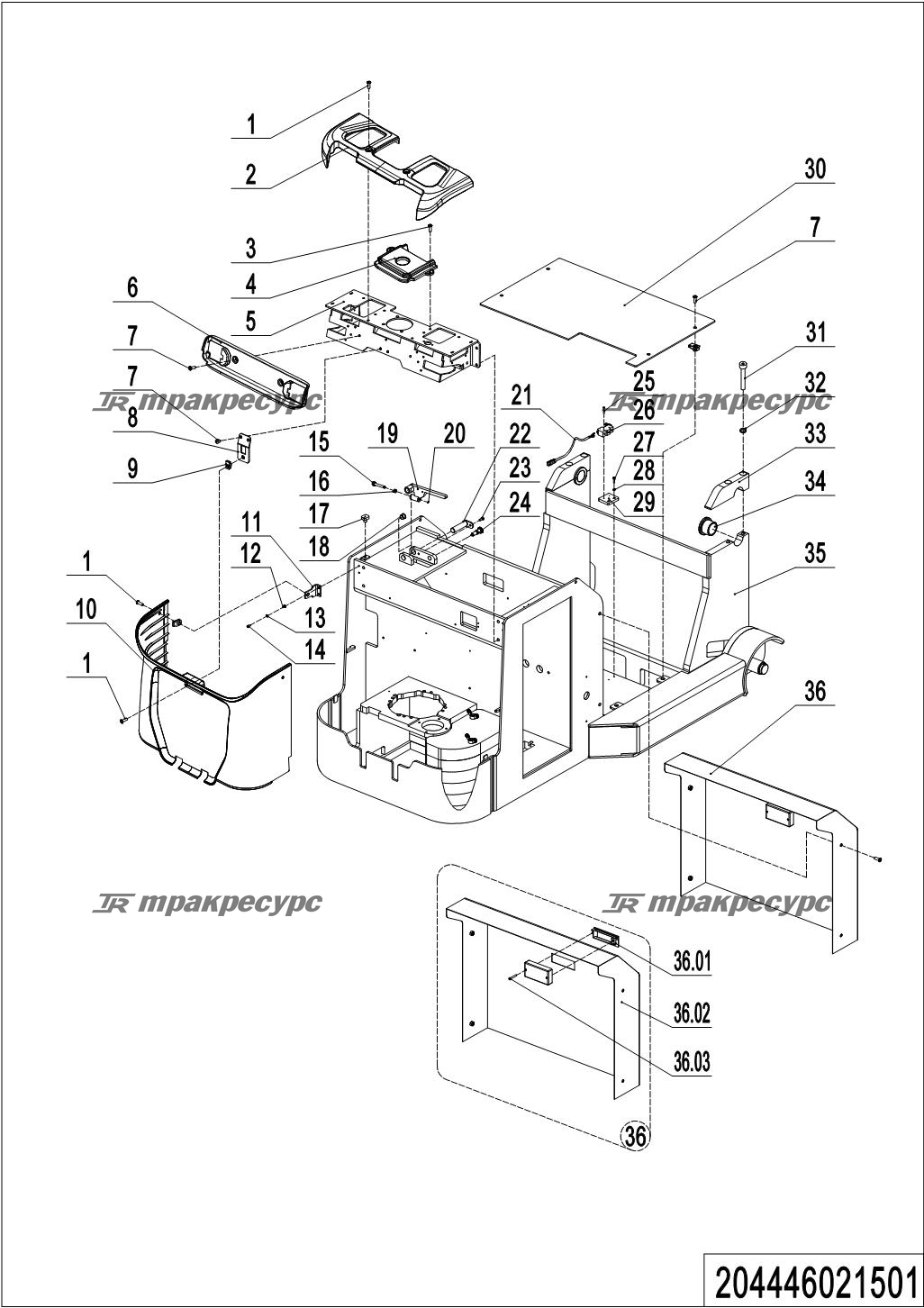

Noblelift PSCBxx-PSCB Шасси 204446021501

№	Наименование	Артикул
1	Screw	941100100004
2	Protective Cover	535921520040
3	Screw	910200200074
4	Protective Cover	535921520042
5	Mounting Base	535917510000
6	Protective Cover	535921520041
7	Screw	941100100005
8	Mounting Plate	535921520032
9	Cage Nut	940400400003
10	Protective Cover	535921520039
11	Mounting Plate	535921520031
12	Flat Washer	910400100005
13	Spring Washer	910400500005
14	Screw	910200200035
15	Pin	535921520037
16	Spacer Bush	535921520038
17	Crash Pad	505938520016
18	Bushing	940500200008
19	Baffle	535921510003
20	Circlip	910401300002
21	Wire Harness	204433010017
22	Pin	535921510004
23	Screw	910200400017
24	Indexing Plunger	940800900002
25	Screw	910200500016
26	Microswitch	920200300003
27	Screw	910200200016
28	Flat Washer	910400100003
29	Mounting Plate	204424020002
30	Close Plate	204421520051
30	Close Plate	204421520027
30	Close Plate	204421520042
31	Screw	910200200126
32	Spring Washer	910400500010
33	Press Plate	204421520026
34	Bearing	940500400001
35	Chassis(PSCB 12)	204421510004
35	Chassis(PSCB 16)	204421510000
35	Chassis(PSCB 18)	204421510003
36	Cover Kit	204421510002
36.01	Handle	206521510010
36.02	Cover	204421510001
36.03	Screw	910200500015
